High Precision and Efficiency for Coil Winding

The Automatic CNC Ceiling Fan Single Drive Coil Winding Machine (Model – CW02) delivers unparalleled precision for winding ceiling fan stators and motor stator coils. Designed with advanced functionality, it incorporates automatic features like winding, winding displacement, rotation pole, and clamping. These functions streamline operations and improve efficiency. Users have the flexibility to enjoy optional features based on their specific needs, making it adaptable for various coil production processes.

Advanced Multi-Function Controller for Enhanced Performance

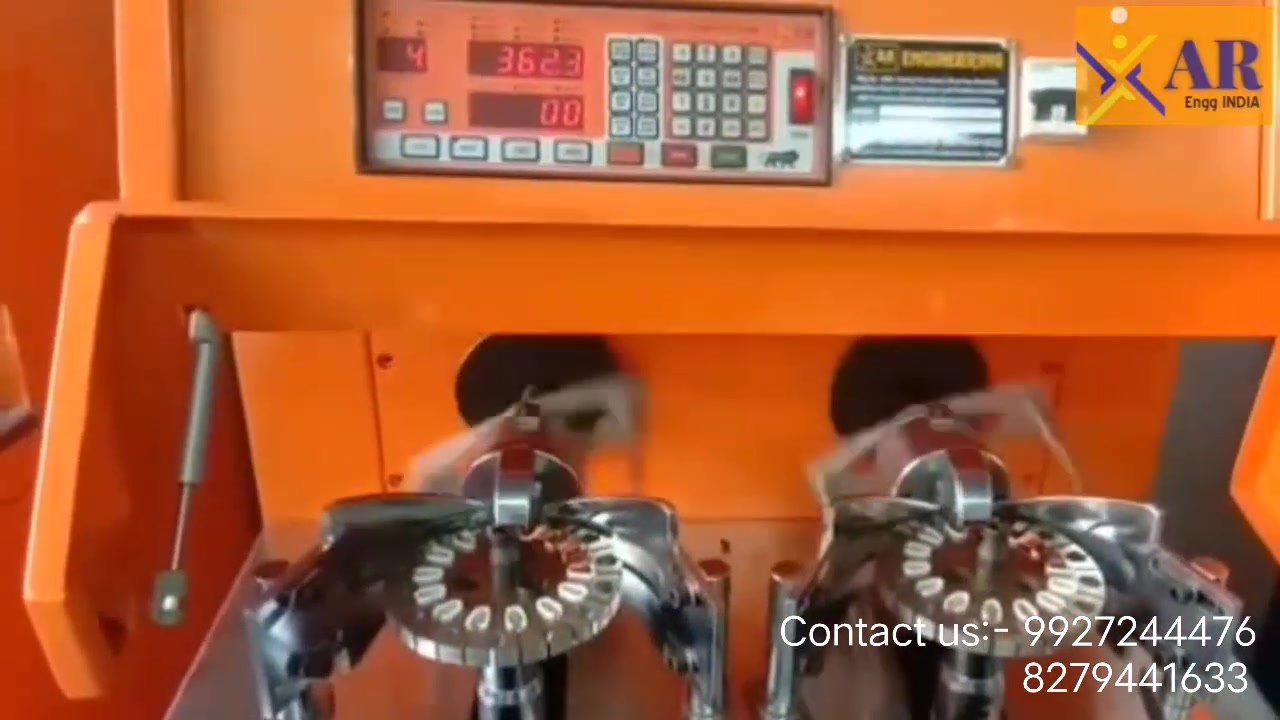

This machine’s multi-function controller is intuitive and user-friendly, allowing easy data setting, permanent storage, and automatic speed adjustment. It delivers smooth performance with deceleration at both ends, ensuring precise output every time. Additionally, the controller’s programmable design lets users modify operations to meet diverse requirements, enhancing productivity and operational versatility.

Robust Design and High Output Capability

The CW02 machine is engineered with a powerful anti-interference power circuit, ensuring consistent performance in demanding environments. Suitable for wires ranging from 30-40 SWG and coil thicknesses between 8-30MM, the machine supports applications like ceiling fan, BLDC fan, and micro motor stators. With a production capacity of 250-300 units in an 8-hour shift, and a compact design measuring 1300x700x1250mm, this machine strikes the perfect balance between size and efficiency. It’s built to last, with an overall weight of 350KG and an operational voltage of AC220V, single phase, 50Hz.
